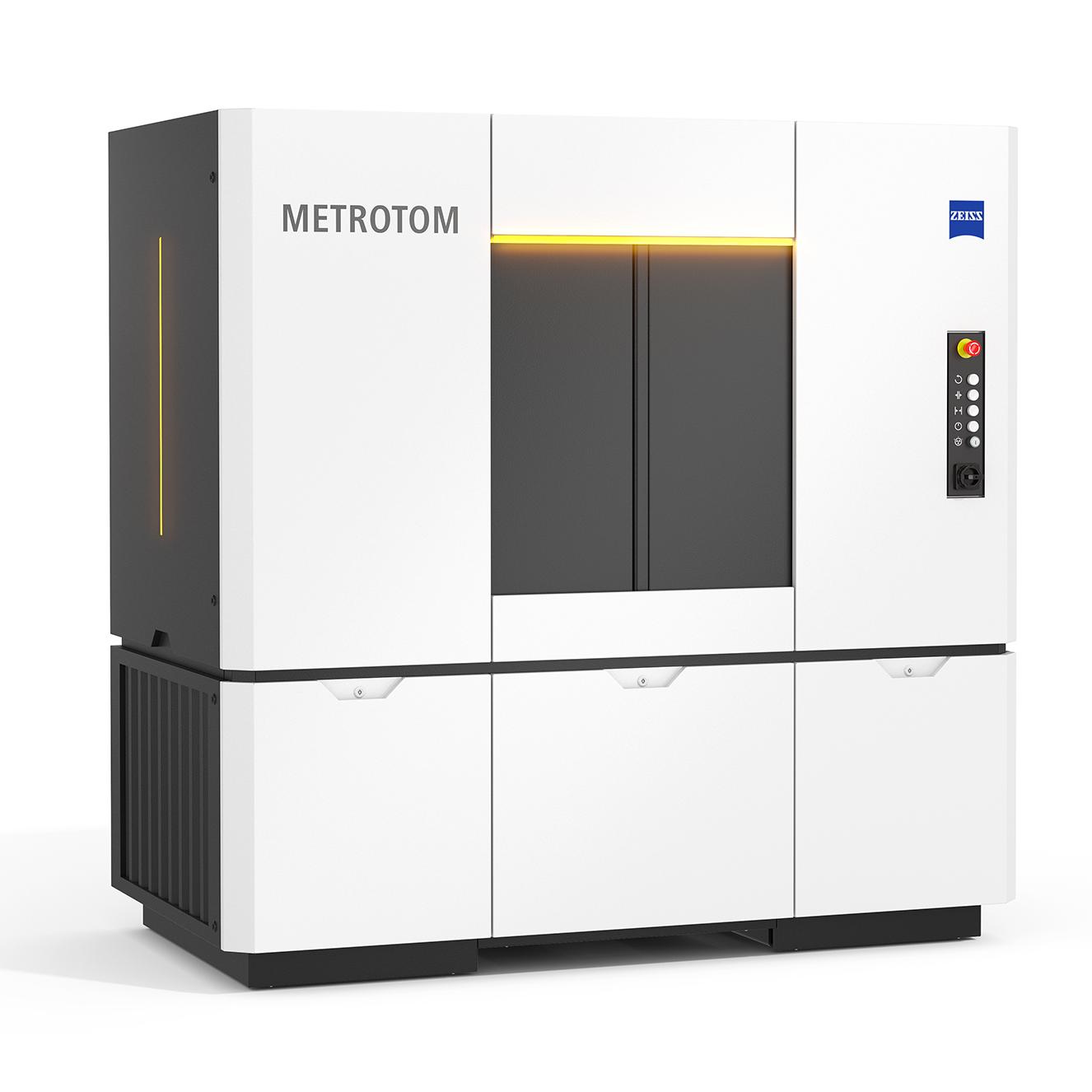

METROTOM 6 scout
Флагманът на разделителната способност за КТ инспекция и метрологияZEISS METROTOM 6 scout дигитализира сложни детайли, включително вътрешни геометрии, с най-високо ниво на детайлизиране Резултатът е пълно 3D изображение за GD&T анализ или сравнения целево/действително КТ метрологичната система е отличен избор за дигитализиране на малки пластмасови детайли
Измервания с висока разделителна способност на малки пластмасови детайли
ZEISS METROTOM 6 scout е перфектното решение за безразрушителна инспекция и 3D метрология на компоненти Отлична измервателна ефективност и безпроблемен работен процес осигуряват максимум надеждност и прецизност в откриването на дефекти
![Разкрива това, което остава скрито за други технологии]({"xsmall":"https://www.zeiss.bg/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss-metrotom-6-scout-tileteaser-a.jpg/_jcr_content/renditions/original.image_file.100.75.0,125,1000,875.file/zeiss-metrotom-6-scout-tileteaser-a.jpg","small":"https://www.zeiss.bg/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss-metrotom-6-scout-tileteaser-a.jpg/_jcr_content/renditions/original.image_file.360.270.0,125,1000,875.file/zeiss-metrotom-6-scout-tileteaser-a.jpg","medium":"https://www.zeiss.bg/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss-metrotom-6-scout-tileteaser-a.jpg/_jcr_content/renditions/original.image_file.768.576.0,125,1000,875.file/zeiss-metrotom-6-scout-tileteaser-a.jpg","large":"https://www.zeiss.bg/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss-metrotom-6-scout-tileteaser-a.jpg/_jcr_content/renditions/original.image_file.1000.750.0,125,1000,875.file/zeiss-metrotom-6-scout-tileteaser-a.jpg","xlarge":"https://www.zeiss.bg/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss-metrotom-6-scout-tileteaser-a.jpg/_jcr_content/renditions/original.image_file.1000.750.0,125,1000,875.file/zeiss-metrotom-6-scout-tileteaser-a.jpg","xxlarge":"https://www.zeiss.bg/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss-metrotom-6-scout-tileteaser-a.jpg/_jcr_content/renditions/original.image_file.1000.750.0,125,1000,875.file/zeiss-metrotom-6-scout-tileteaser-a.jpg","max":"https://www.zeiss.bg/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss-metrotom-6-scout-tileteaser-a.jpg/_jcr_content/renditions/original.image_file.1000.750.0,125,1000,875.file/zeiss-metrotom-6-scout-tileteaser-a.jpg"} "Разкрива това, което остава скрито за други технологии")
![Разкрива това, което остава скрито за други технологии]({"xsmall":"https://www.zeiss.bg/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss-metrotom-6-scout-tileteaser-b.jpg/_jcr_content/renditions/original.image_file.100.75.0,125,1000,875.file/zeiss-metrotom-6-scout-tileteaser-b.jpg","small":"https://www.zeiss.bg/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss-metrotom-6-scout-tileteaser-b.jpg/_jcr_content/renditions/original.image_file.360.270.0,125,1000,875.file/zeiss-metrotom-6-scout-tileteaser-b.jpg","medium":"https://www.zeiss.bg/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss-metrotom-6-scout-tileteaser-b.jpg/_jcr_content/renditions/original.image_file.768.576.0,125,1000,875.file/zeiss-metrotom-6-scout-tileteaser-b.jpg","large":"https://www.zeiss.bg/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss-metrotom-6-scout-tileteaser-b.jpg/_jcr_content/renditions/original.image_file.1000.750.0,125,1000,875.file/zeiss-metrotom-6-scout-tileteaser-b.jpg","xlarge":"https://www.zeiss.bg/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss-metrotom-6-scout-tileteaser-b.jpg/_jcr_content/renditions/original.image_file.1000.750.0,125,1000,875.file/zeiss-metrotom-6-scout-tileteaser-b.jpg","xxlarge":"https://www.zeiss.bg/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss-metrotom-6-scout-tileteaser-b.jpg/_jcr_content/renditions/original.image_file.1000.750.0,125,1000,875.file/zeiss-metrotom-6-scout-tileteaser-b.jpg","max":"https://www.zeiss.bg/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss-metrotom-6-scout-tileteaser-b.jpg/_jcr_content/renditions/original.image_file.1000.750.0,125,1000,875.file/zeiss-metrotom-6-scout-tileteaser-b.jpg"} "Разкрива това, което остава скрито за други технологии")
Разкрива това, което остава скрито за други технологии

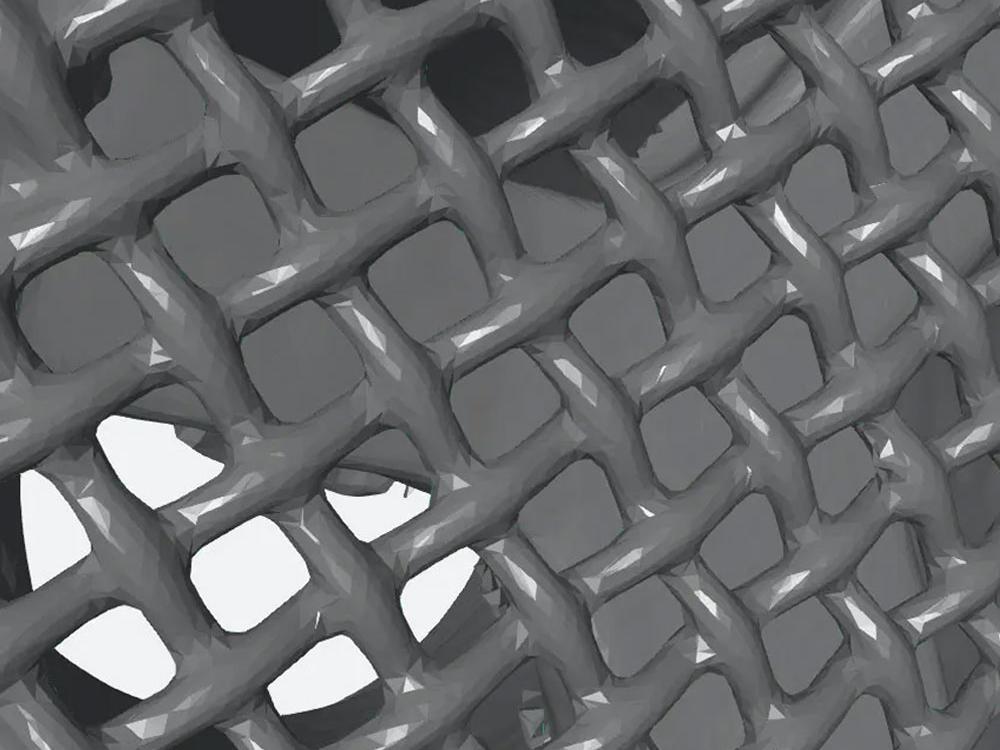

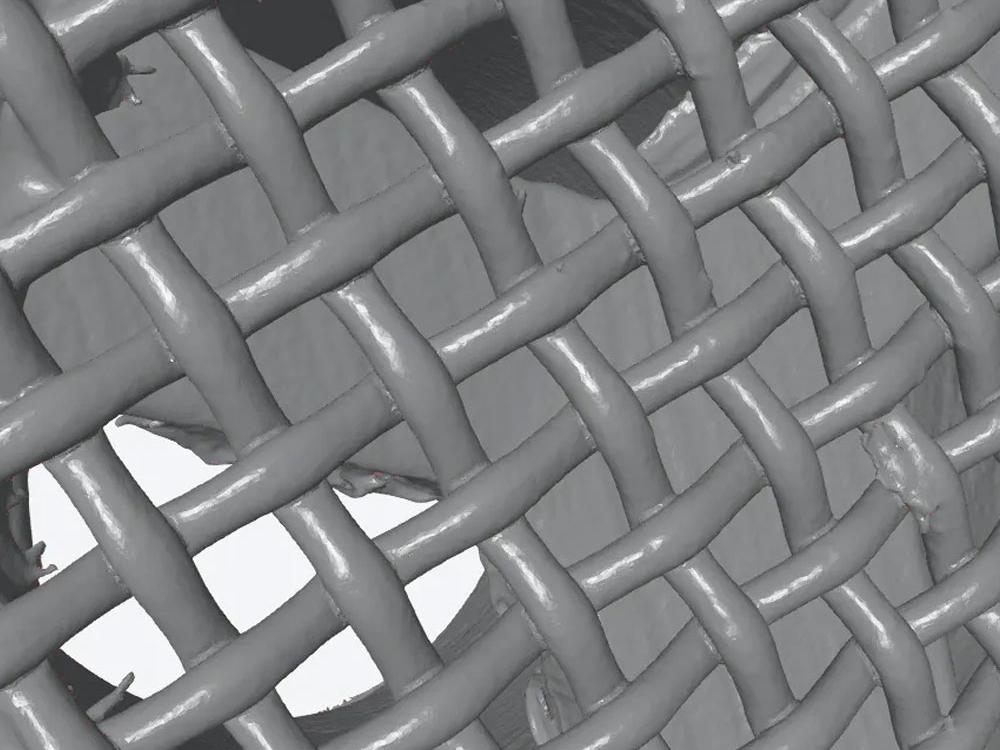

Разделителна способностПри дигитализиране на детайл, ZEISS METROTOM 6 scout постига забележителен контраст: На първо място, защото използва 3k рентгенов детектор с висока разделителна способност за събиране на измервателните данни и, второ, защото всеки детайл се измерва във възможно най-добрата измервателна позиция и следователно винаги с възможно най-високата разделителна способност. Резултатът може да се види на илюстрацията: Отляво, измервателни данни, генерирани с ZEISS METROTOM 6 scout, а отдясно, обичайният стандарт.
![Гарантира висока прецизност]({"xsmall":"https://www.zeiss.bg/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss-metrotom-6-tileteaser.jpg/_jcr_content/renditions/original.image_file.100.100.file/zeiss-metrotom-6-tileteaser.jpg","small":"https://www.zeiss.bg/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss-metrotom-6-tileteaser.jpg/_jcr_content/renditions/original.image_file.360.360.file/zeiss-metrotom-6-tileteaser.jpg","medium":"https://www.zeiss.bg/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss-metrotom-6-tileteaser.jpg/_jcr_content/renditions/original.image_file.768.768.file/zeiss-metrotom-6-tileteaser.jpg","large":"https://www.zeiss.bg/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss-metrotom-6-tileteaser.jpg/_jcr_content/renditions/original./zeiss-metrotom-6-tileteaser.jpg","xlarge":"https://www.zeiss.bg/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss-metrotom-6-tileteaser.jpg/_jcr_content/renditions/original./zeiss-metrotom-6-tileteaser.jpg","xxlarge":"https://www.zeiss.bg/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss-metrotom-6-tileteaser.jpg/_jcr_content/renditions/original./zeiss-metrotom-6-tileteaser.jpg","max":"https://www.zeiss.bg/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss-metrotom-6-tileteaser.jpg/_jcr_content/renditions/original./zeiss-metrotom-6-tileteaser.jpg"} "Гарантира висока прецизност")
Гарантира висока прецизност
ТочностZEISS METROTOM 6 scout използва математически модел за генериране на прецизни 3D измервателни данни По време на целия измервателен процес, той комбинира перфектно взаимно свързани алгоритми с дигитално моделиране на измервателната стая. Той предлага и оптимизирана механична стабилност за всички компоненти, релевантна за измерването Извод: Въз основа на измервателните резултати можете да оцените качеството на един детайл по наистина надежден и високо точен начин и да направите анализ след това.
Центрира детайли автоматично

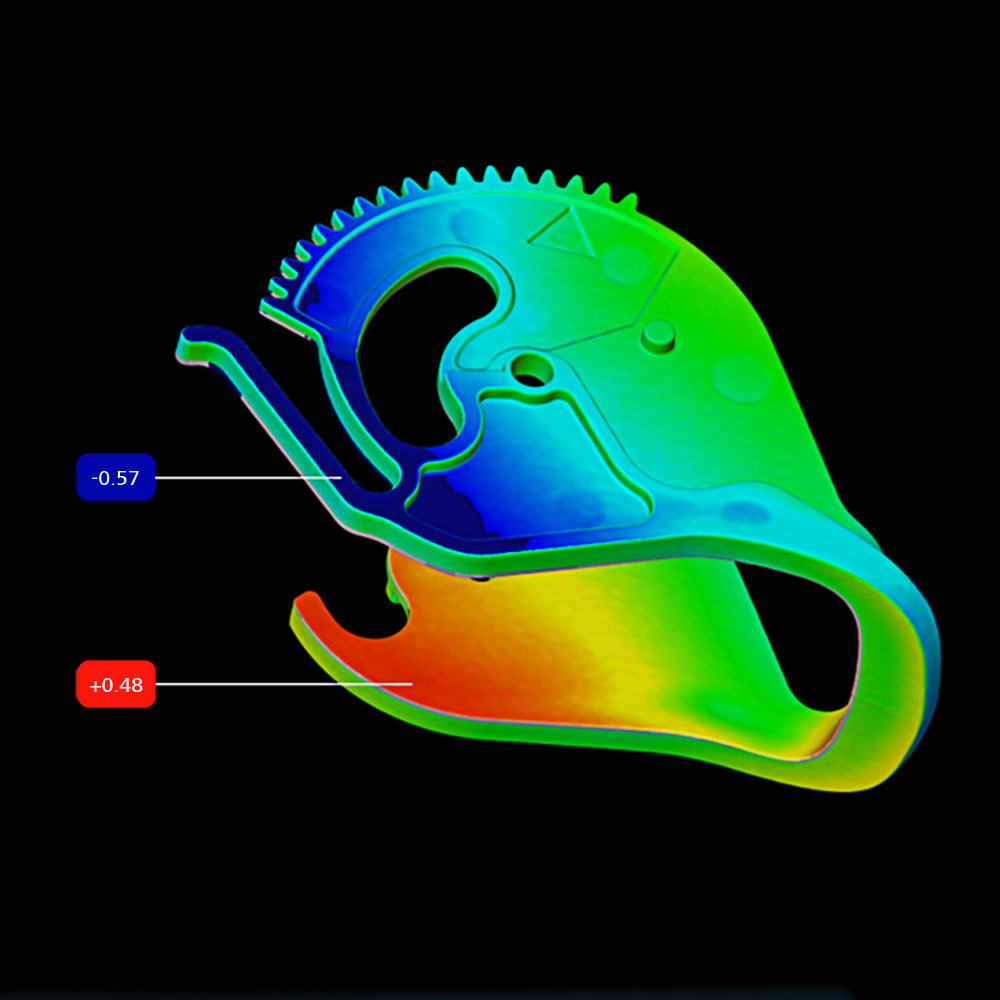

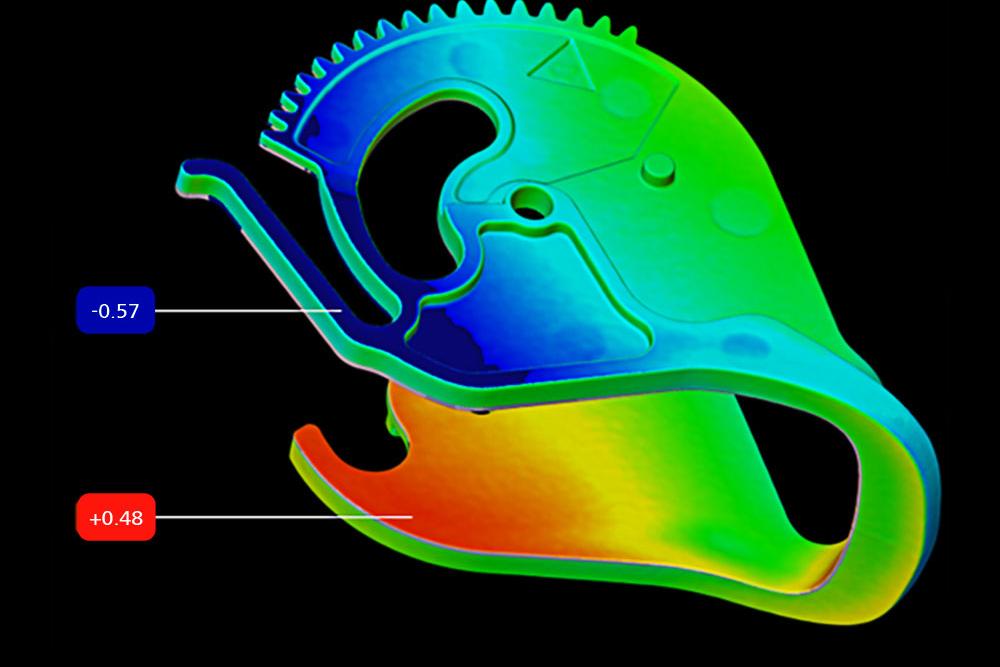

Софтуер всичко-в-едно
![Intuitive and powerful]({"xsmall":"https://www.zeiss.bg/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss-metrotom-6-scout-inspect-x-ray.jpg/_jcr_content/renditions/original.image_file.100.67.0,167,1000,834.file/zeiss-metrotom-6-scout-inspect-x-ray.jpg","small":"https://www.zeiss.bg/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss-metrotom-6-scout-inspect-x-ray.jpg/_jcr_content/renditions/original.image_file.360.240.0,167,1000,834.file/zeiss-metrotom-6-scout-inspect-x-ray.jpg","medium":"https://www.zeiss.bg/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss-metrotom-6-scout-inspect-x-ray.jpg/_jcr_content/renditions/original.image_file.768.512.0,167,1000,834.file/zeiss-metrotom-6-scout-inspect-x-ray.jpg","large":"https://www.zeiss.bg/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss-metrotom-6-scout-inspect-x-ray.jpg/_jcr_content/renditions/original.image_file.1000.667.0,167,1000,834.file/zeiss-metrotom-6-scout-inspect-x-ray.jpg","xlarge":"https://www.zeiss.bg/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss-metrotom-6-scout-inspect-x-ray.jpg/_jcr_content/renditions/original.image_file.1000.667.0,167,1000,834.file/zeiss-metrotom-6-scout-inspect-x-ray.jpg","xxlarge":"https://www.zeiss.bg/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss-metrotom-6-scout-inspect-x-ray.jpg/_jcr_content/renditions/original.image_file.1000.667.0,167,1000,834.file/zeiss-metrotom-6-scout-inspect-x-ray.jpg","max":"https://www.zeiss.bg/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss-metrotom-6-scout-inspect-x-ray.jpg/_jcr_content/renditions/original.image_file.1000.667.0,167,1000,834.file/zeiss-metrotom-6-scout-inspect-x-ray.jpg"} "Intuitive and powerful")
![Едно решения за всички етапи на процеса]({"xsmall":"https://www.zeiss.bg/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss-metrotom-6-scout-inspect.jpg/_jcr_content/renditions/original.image_file.100.100.file/zeiss-metrotom-6-scout-inspect.jpg","small":"https://www.zeiss.bg/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss-metrotom-6-scout-inspect.jpg/_jcr_content/renditions/original.image_file.360.360.file/zeiss-metrotom-6-scout-inspect.jpg","medium":"https://www.zeiss.bg/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss-metrotom-6-scout-inspect.jpg/_jcr_content/renditions/original.image_file.768.768.file/zeiss-metrotom-6-scout-inspect.jpg","large":"https://www.zeiss.bg/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss-metrotom-6-scout-inspect.jpg/_jcr_content/renditions/original./zeiss-metrotom-6-scout-inspect.jpg","xlarge":"https://www.zeiss.bg/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss-metrotom-6-scout-inspect.jpg/_jcr_content/renditions/original./zeiss-metrotom-6-scout-inspect.jpg","xxlarge":"https://www.zeiss.bg/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss-metrotom-6-scout-inspect.jpg/_jcr_content/renditions/original./zeiss-metrotom-6-scout-inspect.jpg","max":"https://www.zeiss.bg/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss-metrotom-6-scout-inspect.jpg/_jcr_content/renditions/original./zeiss-metrotom-6-scout-inspect.jpg"} "Едно решения за всички етапи на процеса")
![Интуитивен и мощен]({"xsmall":"https://www.zeiss.bg/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss-metrotom-6-scout-inspect-x-ray.jpg/_jcr_content/renditions/original.image_file.100.100.file/zeiss-metrotom-6-scout-inspect-x-ray.jpg","small":"https://www.zeiss.bg/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss-metrotom-6-scout-inspect-x-ray.jpg/_jcr_content/renditions/original.image_file.360.360.file/zeiss-metrotom-6-scout-inspect-x-ray.jpg","medium":"https://www.zeiss.bg/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss-metrotom-6-scout-inspect-x-ray.jpg/_jcr_content/renditions/original.image_file.768.768.file/zeiss-metrotom-6-scout-inspect-x-ray.jpg","large":"https://www.zeiss.bg/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss-metrotom-6-scout-inspect-x-ray.jpg/_jcr_content/renditions/original./zeiss-metrotom-6-scout-inspect-x-ray.jpg","xlarge":"https://www.zeiss.bg/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss-metrotom-6-scout-inspect-x-ray.jpg/_jcr_content/renditions/original./zeiss-metrotom-6-scout-inspect-x-ray.jpg","xxlarge":"https://www.zeiss.bg/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss-metrotom-6-scout-inspect-x-ray.jpg/_jcr_content/renditions/original./zeiss-metrotom-6-scout-inspect-x-ray.jpg","max":"https://www.zeiss.bg/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss-metrotom-6-scout-inspect-x-ray.jpg/_jcr_content/renditions/original./zeiss-metrotom-6-scout-inspect-x-ray.jpg"} "Интуитивен и мощен")
![ZEISS METROTOM 1500]({"xsmall":"https://www.zeiss.bg/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss_metrotom-6-1500-800_600.jpg/_jcr_content/renditions/original.image_file.100.56.0,75,800,525.file/zeiss_metrotom-6-1500-800_600.jpg","small":"https://www.zeiss.bg/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss_metrotom-6-1500-800_600.jpg/_jcr_content/renditions/original.image_file.360.203.0,75,800,525.file/zeiss_metrotom-6-1500-800_600.jpg","medium":"https://www.zeiss.bg/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss_metrotom-6-1500-800_600.jpg/_jcr_content/renditions/original.image_file.768.432.0,75,800,525.file/zeiss_metrotom-6-1500-800_600.jpg","large":"https://www.zeiss.bg/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss_metrotom-6-1500-800_600.jpg/_jcr_content/renditions/original.image_file.800.450.0,75,800,525.file/zeiss_metrotom-6-1500-800_600.jpg","xlarge":"https://www.zeiss.bg/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss_metrotom-6-1500-800_600.jpg/_jcr_content/renditions/original.image_file.800.450.0,75,800,525.file/zeiss_metrotom-6-1500-800_600.jpg","xxlarge":"https://www.zeiss.bg/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss_metrotom-6-1500-800_600.jpg/_jcr_content/renditions/original.image_file.800.450.0,75,800,525.file/zeiss_metrotom-6-1500-800_600.jpg","max":"https://www.zeiss.bg/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss_metrotom-6-1500-800_600.jpg/_jcr_content/renditions/original.image_file.800.450.0,75,800,525.file/zeiss_metrotom-6-1500-800_600.jpg"} "ZEISS METROTOM 1500")
![ZEISS METROTOM 800 225 kV HR]({"xsmall":"https://www.zeiss.bg/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss_metrotom-6-800-225.jpg/_jcr_content/renditions/original.image_file.100.56.0,75,800,525.file/zeiss_metrotom-6-800-225.jpg","small":"https://www.zeiss.bg/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss_metrotom-6-800-225.jpg/_jcr_content/renditions/original.image_file.360.203.0,75,800,525.file/zeiss_metrotom-6-800-225.jpg","medium":"https://www.zeiss.bg/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss_metrotom-6-800-225.jpg/_jcr_content/renditions/original.image_file.768.432.0,75,800,525.file/zeiss_metrotom-6-800-225.jpg","large":"https://www.zeiss.bg/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss_metrotom-6-800-225.jpg/_jcr_content/renditions/original.image_file.800.450.0,75,800,525.file/zeiss_metrotom-6-800-225.jpg","xlarge":"https://www.zeiss.bg/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss_metrotom-6-800-225.jpg/_jcr_content/renditions/original.image_file.800.450.0,75,800,525.file/zeiss_metrotom-6-800-225.jpg","xxlarge":"https://www.zeiss.bg/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss_metrotom-6-800-225.jpg/_jcr_content/renditions/original.image_file.800.450.0,75,800,525.file/zeiss_metrotom-6-800-225.jpg","max":"https://www.zeiss.bg/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss_metrotom-6-800-225.jpg/_jcr_content/renditions/original.image_file.800.450.0,75,800,525.file/zeiss_metrotom-6-800-225.jpg"} "ZEISS METROTOM 800 225 kV HR")
![ZEISS METROTOM 6 scout]({"xsmall":"https://www.zeiss.bg/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss_metrotom-6-800_600.jpg/_jcr_content/renditions/original.image_file.100.56.0,83,800,533.file/zeiss_metrotom-6-800_600.jpg","small":"https://www.zeiss.bg/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss_metrotom-6-800_600.jpg/_jcr_content/renditions/original.image_file.360.203.0,83,800,533.file/zeiss_metrotom-6-800_600.jpg","medium":"https://www.zeiss.bg/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss_metrotom-6-800_600.jpg/_jcr_content/renditions/original.image_file.768.432.0,83,800,533.file/zeiss_metrotom-6-800_600.jpg","large":"https://www.zeiss.bg/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss_metrotom-6-800_600.jpg/_jcr_content/renditions/original.image_file.800.450.0,83,800,533.file/zeiss_metrotom-6-800_600.jpg","xlarge":"https://www.zeiss.bg/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss_metrotom-6-800_600.jpg/_jcr_content/renditions/original.image_file.800.450.0,83,800,533.file/zeiss_metrotom-6-800_600.jpg","xxlarge":"https://www.zeiss.bg/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss_metrotom-6-800_600.jpg/_jcr_content/renditions/original.image_file.800.450.0,83,800,533.file/zeiss_metrotom-6-800_600.jpg","max":"https://www.zeiss.bg/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss_metrotom-6-800_600.jpg/_jcr_content/renditions/original.image_file.800.450.0,83,800,533.file/zeiss_metrotom-6-800_600.jpg"} "ZEISS METROTOM 6 scout")
![ZEISS METROTOM 800 130 kV]({"xsmall":"https://www.zeiss.bg/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss-3d-x-ray-metrotom-800-130-800-600.jpg/_jcr_content/renditions/original.image_file.100.56.file/zeiss-3d-x-ray-metrotom-800-130-800-600.jpg","small":"https://www.zeiss.bg/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss-3d-x-ray-metrotom-800-130-800-600.jpg/_jcr_content/renditions/original.image_file.360.203.file/zeiss-3d-x-ray-metrotom-800-130-800-600.jpg","medium":"https://www.zeiss.bg/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss-3d-x-ray-metrotom-800-130-800-600.jpg/_jcr_content/renditions/original.image_file.768.432.file/zeiss-3d-x-ray-metrotom-800-130-800-600.jpg","large":"https://www.zeiss.bg/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss-3d-x-ray-metrotom-800-130-800-600.jpg/_jcr_content/renditions/original.image_file.1024.576.file/zeiss-3d-x-ray-metrotom-800-130-800-600.jpg","xlarge":"https://www.zeiss.bg/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss-3d-x-ray-metrotom-800-130-800-600.jpg/_jcr_content/renditions/original.image_file.1280.720.file/zeiss-3d-x-ray-metrotom-800-130-800-600.jpg","xxlarge":"https://www.zeiss.bg/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss-3d-x-ray-metrotom-800-130-800-600.jpg/_jcr_content/renditions/original.image_file.1440.810.file/zeiss-3d-x-ray-metrotom-800-130-800-600.jpg","max":"https://www.zeiss.bg/content/dam/iqs/r/systems/x-ray/3d-x-ray/metrotom-6-scout/zeiss-3d-x-ray-metrotom-800-130-800-600.jpg/_jcr_content/renditions/original./zeiss-3d-x-ray-metrotom-800-130-800-600.jpg"} "ZEISS METROTOM 800 130 kV")
Технически данни
Характеристики|
Рентгенов източник |
225 kV |
|---|---|
|
Рентгенов детектор |
Разделителна способност: 3008 x 2512 px |
|
Измервателна площ
|
d: 240 mm |
|
Voxel /триизмерни пиксели/ |
2 -80 µm |
|
Габарити
|
В. 2210 mm |
|
Тегло
|
4800 kg |
|
Област на приложение |
Инспекция на първия артикул, корекция на инструменти, инспекция в процеса на производство
|
|
Инспектирани характеристики
|
Вътрешни структури, дебелина на стени, дефекти в материалите, пори и кухини от свиване
|
|
Измервателни задачи
|
GD&T анализ, сравнения номинално/реално , анализ на сглобки |
