ZEISS DotScan
Оптичен сензор за заснемане на повърхности с неопределена формаХроматичен сензор с бяла светлина за безконтактно заснемане на топографията на работния детайл. Използват се обикновено когато използването на други оптични сензори е затруднено или невъзможно: за чувствителни, отразяващи или ниско-контрастни повърхности.
Характеристики
![ZEISS DotScan: Оптичен сензор за заснемане на повърхности с неопределена форма]({"xsmall":"https://www.zeiss.bg/content/dam/iqs/r/systems/cmm/probes-and-sensors/optical-sensors/dotscan/zeiss-dot-scan-sensor-01.jpg/_jcr_content/renditions/original.image_file.100.56.0,104,2000,1229.file/zeiss-dot-scan-sensor-01.jpg","small":"https://www.zeiss.bg/content/dam/iqs/r/systems/cmm/probes-and-sensors/optical-sensors/dotscan/zeiss-dot-scan-sensor-01.jpg/_jcr_content/renditions/original.image_file.360.203.0,104,2000,1229.file/zeiss-dot-scan-sensor-01.jpg","medium":"https://www.zeiss.bg/content/dam/iqs/r/systems/cmm/probes-and-sensors/optical-sensors/dotscan/zeiss-dot-scan-sensor-01.jpg/_jcr_content/renditions/original.image_file.768.432.0,104,2000,1229.file/zeiss-dot-scan-sensor-01.jpg","large":"https://www.zeiss.bg/content/dam/iqs/r/systems/cmm/probes-and-sensors/optical-sensors/dotscan/zeiss-dot-scan-sensor-01.jpg/_jcr_content/renditions/original.image_file.1024.576.0,104,2000,1229.file/zeiss-dot-scan-sensor-01.jpg","xlarge":"https://www.zeiss.bg/content/dam/iqs/r/systems/cmm/probes-and-sensors/optical-sensors/dotscan/zeiss-dot-scan-sensor-01.jpg/_jcr_content/renditions/original.image_file.1280.720.0,104,2000,1229.file/zeiss-dot-scan-sensor-01.jpg","xxlarge":"https://www.zeiss.bg/content/dam/iqs/r/systems/cmm/probes-and-sensors/optical-sensors/dotscan/zeiss-dot-scan-sensor-01.jpg/_jcr_content/renditions/original.image_file.1440.810.0,104,2000,1229.file/zeiss-dot-scan-sensor-01.jpg","max":"https://www.zeiss.bg/content/dam/iqs/r/systems/cmm/probes-and-sensors/optical-sensors/dotscan/zeiss-dot-scan-sensor-01.jpg/_jcr_content/renditions/original.image_file.1920.1080.0,104,2000,1229.file/zeiss-dot-scan-sensor-01.jpg"} "ZEISS DotScan: Оптичен сензор за заснемане на повърхности с неопределена форма")

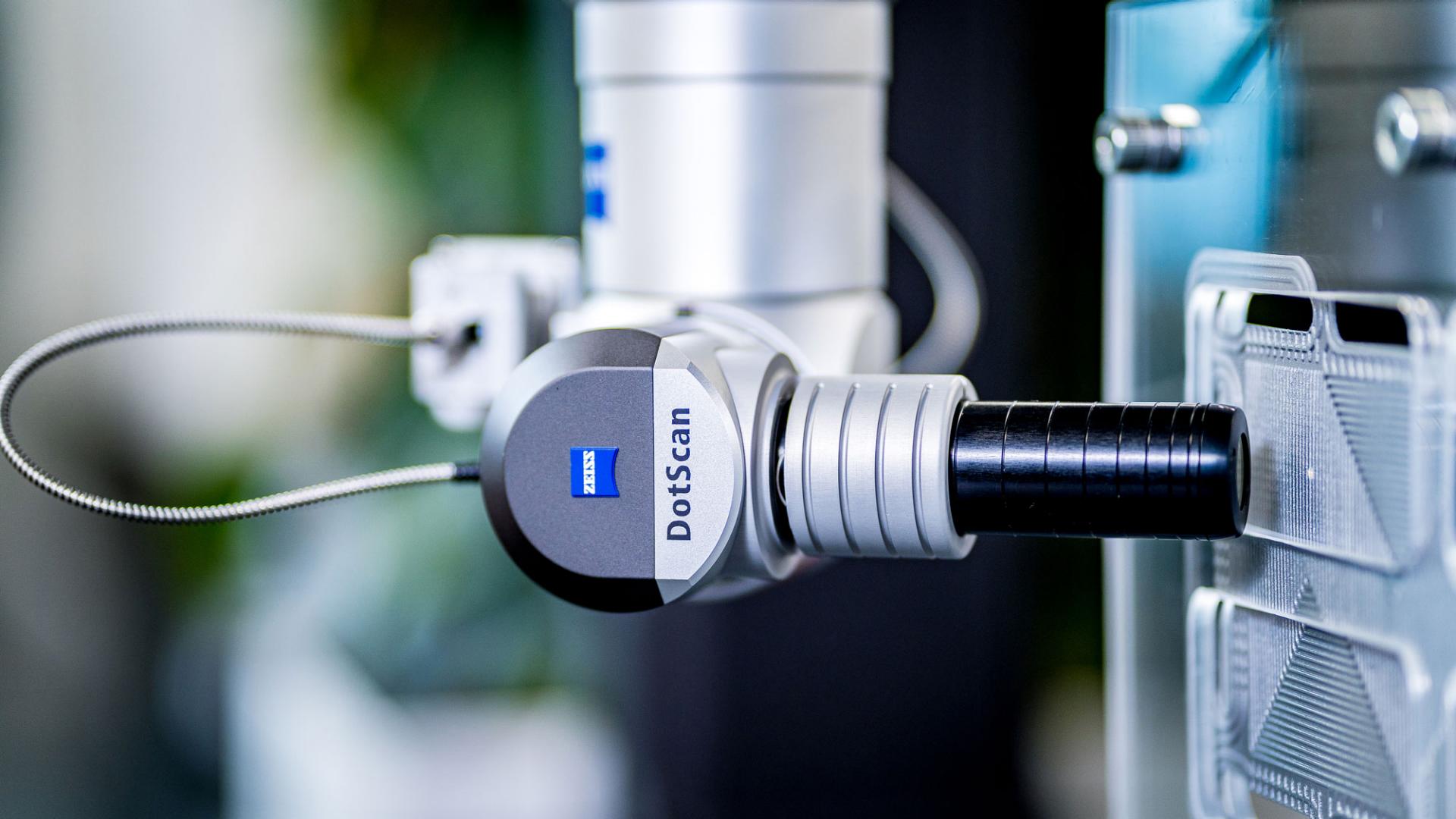

ZEISS DotScan е изключителна опция за заснемане на повърхности с неопределена форма и дори за миниатюрни структури. Хроматичните сензори с бяла светлина - и следователно и ZEISS DotScan - са предпочитан метод, особено когато стилусите или сензорите на камерата достигнат своите лимити върху чувствителни, меки, отразяващи или ниско-контрастни повърхности.

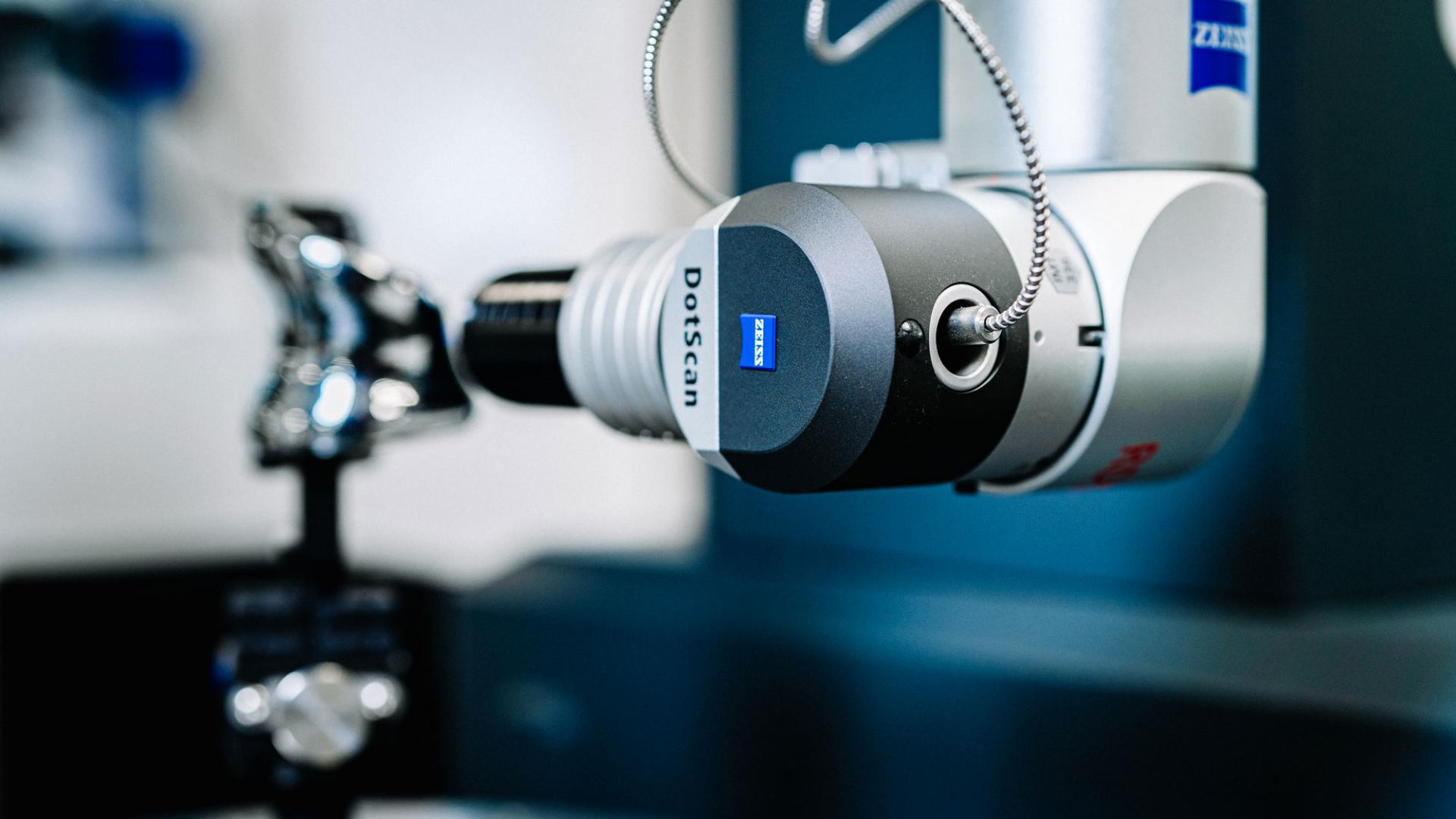

С ZEISS DotScan силно отразяващи повърхности като метални компоненти в коленни импланти могат да бъдат сканирани без нужда от инжектиране на контрастно вещество. Възможно е също и различаване на прозрачни лакирани повърхности от други метални слоеве, които са под повърхността.
![ZEISS DotScan: Оптичен сензор за заснемане на повърхности с неопределена форма]({"xsmall":"https://www.zeiss.bg/content/dam/iqs/r/systems/cmm/probes-and-sensors/optical-sensors/dotscan/zeiss-dot-scan-sensor-02.jpg/_jcr_content/renditions/original.image_file.100.56.0,104,2000,1229.file/zeiss-dot-scan-sensor-02.jpg","small":"https://www.zeiss.bg/content/dam/iqs/r/systems/cmm/probes-and-sensors/optical-sensors/dotscan/zeiss-dot-scan-sensor-02.jpg/_jcr_content/renditions/original.image_file.360.203.0,104,2000,1229.file/zeiss-dot-scan-sensor-02.jpg","medium":"https://www.zeiss.bg/content/dam/iqs/r/systems/cmm/probes-and-sensors/optical-sensors/dotscan/zeiss-dot-scan-sensor-02.jpg/_jcr_content/renditions/original.image_file.768.432.0,104,2000,1229.file/zeiss-dot-scan-sensor-02.jpg","large":"https://www.zeiss.bg/content/dam/iqs/r/systems/cmm/probes-and-sensors/optical-sensors/dotscan/zeiss-dot-scan-sensor-02.jpg/_jcr_content/renditions/original.image_file.1024.576.0,104,2000,1229.file/zeiss-dot-scan-sensor-02.jpg","xlarge":"https://www.zeiss.bg/content/dam/iqs/r/systems/cmm/probes-and-sensors/optical-sensors/dotscan/zeiss-dot-scan-sensor-02.jpg/_jcr_content/renditions/original.image_file.1280.720.0,104,2000,1229.file/zeiss-dot-scan-sensor-02.jpg","xxlarge":"https://www.zeiss.bg/content/dam/iqs/r/systems/cmm/probes-and-sensors/optical-sensors/dotscan/zeiss-dot-scan-sensor-02.jpg/_jcr_content/renditions/original.image_file.1440.810.0,104,2000,1229.file/zeiss-dot-scan-sensor-02.jpg","max":"https://www.zeiss.bg/content/dam/iqs/r/systems/cmm/probes-and-sensors/optical-sensors/dotscan/zeiss-dot-scan-sensor-02.jpg/_jcr_content/renditions/original.image_file.1920.1080.0,104,2000,1229.file/zeiss-dot-scan-sensor-02.jpg"} "ZEISS DotScan: Оптичен сензор за заснемане на повърхности с неопределена форма")
Гъвкава употреба
ZEISS DotScan се предлага в три размера за три различни измервателни диапазона: 10, 3 и 1 mm. Сензорът може да се смяна напълно автоматично с друг контактен или оптичен сензор с един ЦПУ ход. С инкременти от 2,5 градуса, артикулиращата ос може да центрира ZEISS DotScan перпендикулярно на повърхността на сканирания компонент.
И тъй като максималния измервателен ъгъл на ZEISS DotScan 1 mm е плюс/минус 30 градуса, дори и компоненти с много извит контур могат да бъдат сканирани. Благодарение на режима на работа на сензора – могат без затруднение да се сканират най-различни материали от всичките им страни. Заедно с ротационна маса, могат да се извършват дори измервания с 4-осево сканиране,
