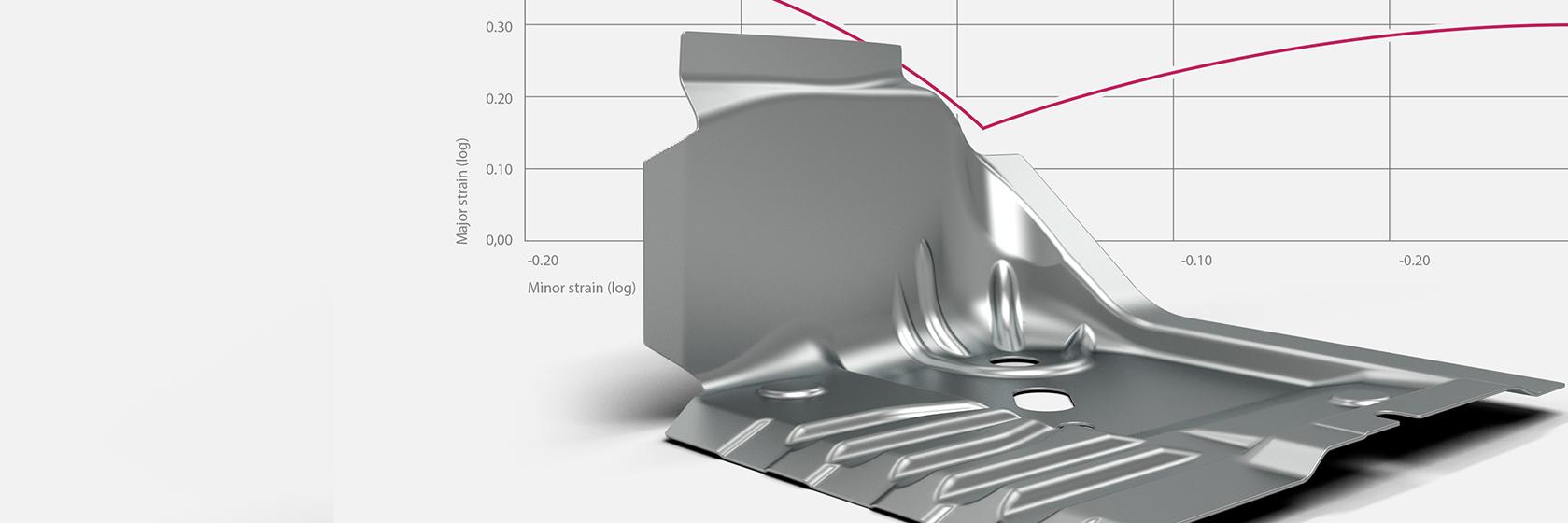

Подобрени FEM-симулации чрез сравнение с реални измервателни данни
Предизвикателството
Продукти и производствени процеси се проектират и оптимизират с числови симулационни методи Това повдига въпроса: Колко точни са резултатите от тези симулации? Тук играят роля много фактори Освен всичко друго, характеристиките на материала влияят на поведението на деформация на детайла, както и точността и надеждността на симулационните изчисления.
Решението
Симулациите на формоването могат да бъдат проверени и оптимизирани чрез валидирането им с експериментални измервания. За тази цел потребителят измерва детайла със системата ARGUS. След това данните от това измерване могат да бъдат сравнени числово и по цялата повърхност на детайла със съответните FEM изчисления. Анализира се поведението на реалната геометрия на детайла, намаляването на дебелината на материала и големите и незначителни напрежения в сравнение с данните от симулацията.
Констатациите могат да бъдат въведени обратно в параметрите на следващата симулация. По този начин следващите изчисления могат да бъдат подобрени и разходите за разработване на бъдещи проекти да бъдат намалени.
