ZEISS CALYPSO 2024

CALYPSO is now available as a 64-bit version and can support you on all current operating systems. This increases the performance of your measurement system.

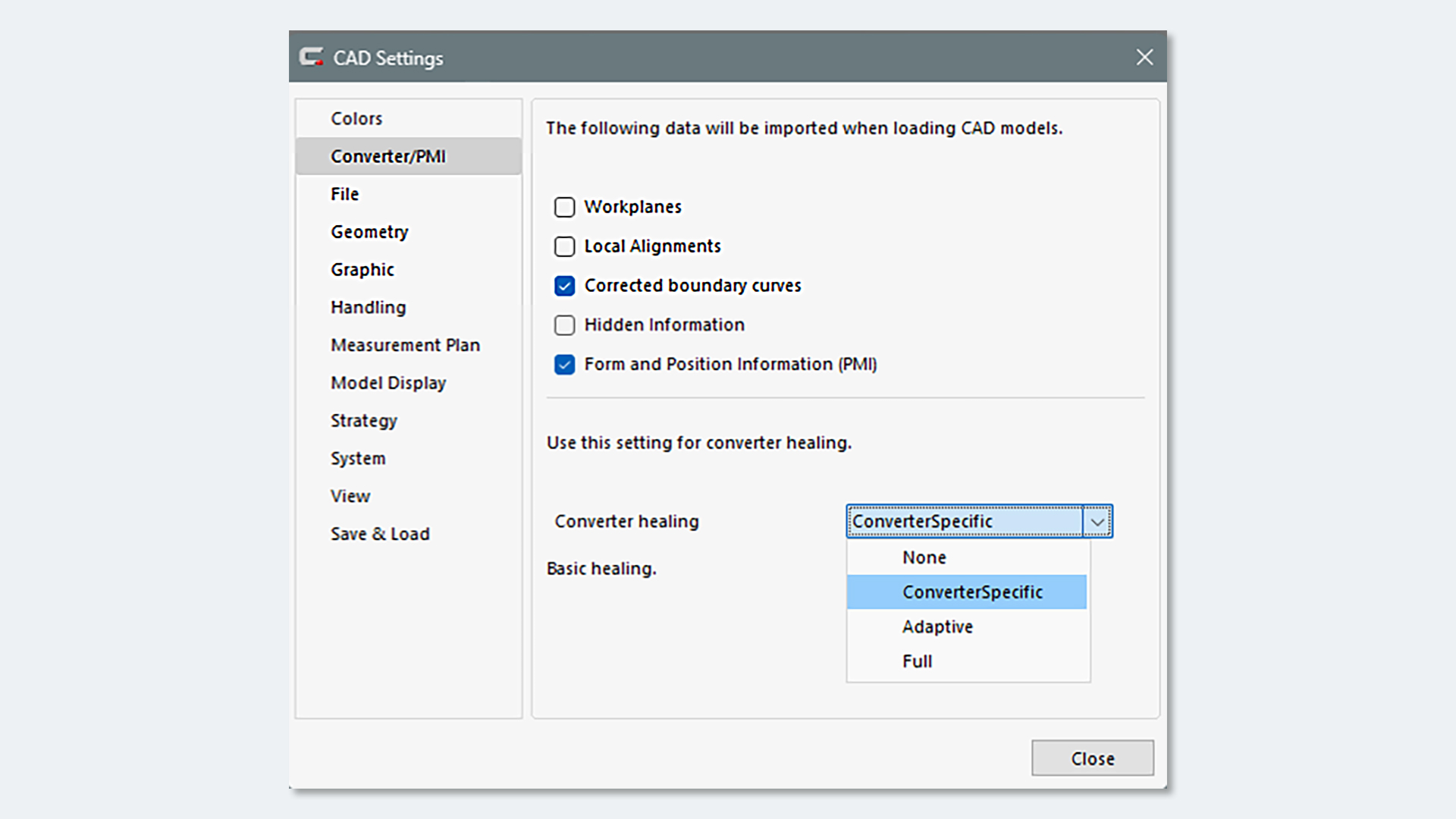

In CALYPSO 2024, you can use Product Manufacturing Information (PMI) to create collection plans based on the new GD&T library. The powerful combination of PMI and the library allows you to work faster and more productively.

With the new reflex correction, the software increases the robustness of edge recognition, since the influence of surface finishing is reduced. In addition, the mosaic function offers you a new way to create a large image from different images.

With this year's release, CALYPSO supports the combination of ZEISS LineScan and a rotary table for 4-axis measurements. This reduces the number of RDS positions required for carrying out measurement tasks. This avoids reorientation of the sensor and allows you to perform measurement tasks faster and with higher performance.

With ZEISS CALYPSO, you can easily measure 1000 holes in ten minutes, for example. To optimize the subsequent manual evaluation of the measurement reports, ZEISS CALYPSO recognizes the inspection characteristics with errors and automatically displays the complete detailed information in the measurement report. This ZEISS CALYPSO inspection characteristic concept has now also been incorporated into the automated defect analysis in ZEISS PiWeb reporting. This means that all characteristics that are out of tolerance are automatically displayed in the interactive CAD view.

To ensure that your coordinate measuring machine is not occupied by the evaluation after the measurement, you can evaluate the measurement results on another computer. The CMM is free for further measurements immediately after the measurement has ended – the utilization is significantly increased. The evaluation computer can be commissioned by different coordinate measuring machines.

The new option ZEISS CALYPSO dynamic planning allows you to easily adapt the inspection plan based on statistical rules from ZEISS GUARDUS MES and ZEISS GUARDUS CAQ. These rules determine how often measurement characteristics are inspected in a measurement plan. This plan can be influenced in the process. With ZEISS CALYPSO dynamic planning, the measurement plan can be adapted with just a few clicks. Based on the applied rules, significant time savings are possible during the measurement process.

An improved mathematical algorithm provides a significant increase in performance for the calculation of freeform and point sets as well as freeform deviations. In addition, the software features an improved adaptation of the Gauss-Chebyshev method for tactile as well as optical points. The latter are calculated faster by a factor of 100. Furthermore, the improved mathematical algorithm enables a significantly accelerated data transfer. The optimized freeform user interface can now be used to eliminate outliers, set the number of points output in the CAD window and interactively adjust the CAD display in the report output. Thanks to all these innovations, ZEISS CALYPSO now delivers results up to 20 times faster.
